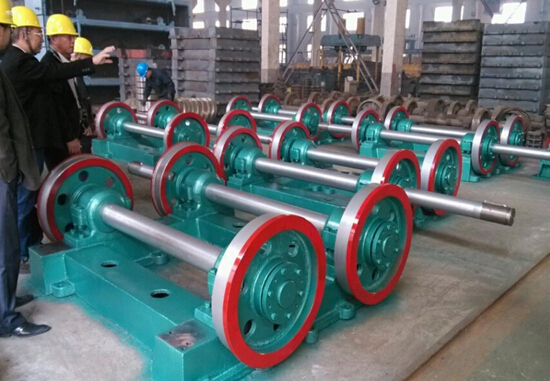

concrete pole machine

Product features and advantages:

1. The split-type rod mould and pile mould produced by our company are assembled as a whole, convenient to transport, fast to assemble, convenient to maintain, strong in structure and high in tensile strength. Multiple functions can be realized, which greatly saves investment costs for customers.

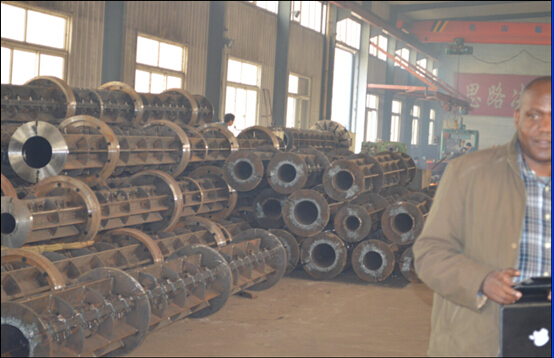

2. Our company's wire rod steel mold adopts thick end plates, flanges, stable connection, strong tensile force, overall longitudinal reinforcement, good stability, and the pipe body is not easy to deform.

3. The integrated hoisting ring adopted is safe and reliable, and the running wheel is thickened, which improves the product quality and extends the service life.

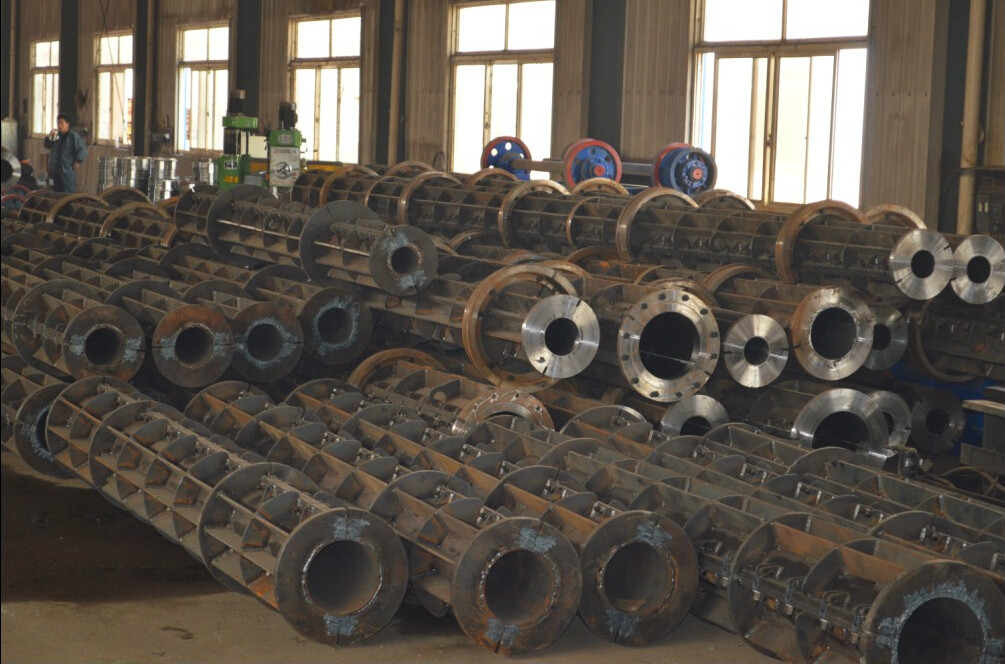

Conical steel mold specifications:

Small end inner diameter (mm)

Tread (mm)

Running wheel diameter (mm)

Length (m)

150

2000

600

6-10

170

2000

600

6-12

190

2000

600

7-12

190

2000

650

15-18

230

2000

650

6-9

310

2000

650

6-12

350

2000

680

6-12

Equal-diameter steel mold specifications (DMD)

Inner diameter (mm)

Tread (mm)

Running wheel diameter (mm)

Length (m)

300

2000

600

4.5-9

400

2000

650

4.5-9

500

2000

680

4.5-9
